Graphing Lines in Standard Form

TipLearning Objectives

By the end of this lesson, you’ll be able to:

  • Recognize Standard Form \(Ax + By = C\).
  • Graph lines by finding the x-intercept and y-intercept.
  • Convert equations between standard form and slope-intercept form.

Key Ideas

Standard Form looks like:

\[ Ax + By = C \]

This form is especially convenient for graphing because you can find intercepts quickly.

To graph:

  1. Set \(x = 0\) to find the y-intercept.
  2. Set \(y = 0\) to find the x-intercept.
  3. Plot both points and draw the line.

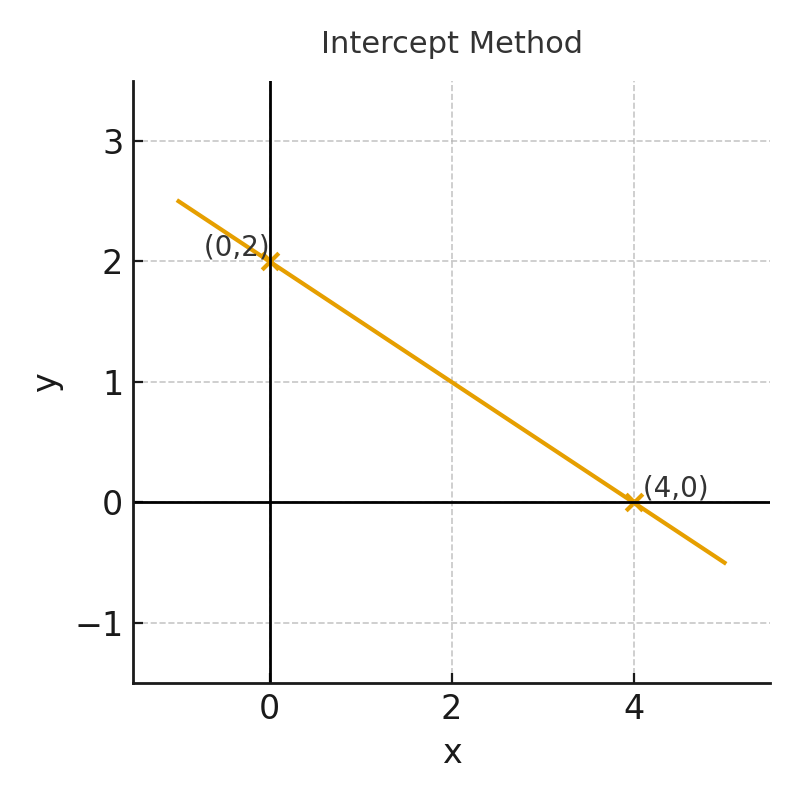

A line showing x- and y-intercepts using the intercept method.

Special cases to remember:

  • If \(B = 0\), the equation becomes \(Ax = C\) → vertical line.
  • If \(A = 0\), the equation becomes \(By = C\) → horizontal line.

Common Problem Types

1. Graph from Intercepts

Example: Graph \(2x + 3y = 12\).

  • x-intercept:
    \(2x = 12 \Rightarrow x = 6\)
  • y-intercept:
    \(3y = 12 \Rightarrow y = 4\)

Plot \((6, 0)\) and \((0, 4)\) and connect.

2. Convert to Slope-Intercept Form

Solve for \(y\):

\[ 3y = -2x + 12 \] \[ y = -\frac{2}{3}x + 4 \]

3. Identify Special Cases

  • \(5x = 20\) → vertical line (\(x = 4\))
  • \(-3y = 9\) → horizontal line (\(y = -3\))

Strategies

  • Use intercepts when the equation is already in standard form — it’s faster than rearranging.
  • When solving for \(y\), move the \(x\)-term first; then divide everything by \(B\).
  • Re-check signs after moving terms; sign errors are common here.
  • If the line looks vertical or horizontal, confirm by checking whether \(A\) or \(B\) is zero.
  • Use two intercept points for a clean, accurate graph.

Worked Examples

Example 1

Graph \(4x - 2y = 8\).

  • x-intercept: \(4x = 8 \Rightarrow x = 2\)
  • y-intercept: \(-2y = 8 \Rightarrow y = -4\)

Plot \((2, 0)\) and \((0, -4)\).

Example 2

Rewrite in slope-intercept form:

\[ 5x + y = 10 \]

Subtract \(5x\):

\[ y = -5x + 10 \]

WarningCommon Mistakes
  • Forgetting to divide the constant when solving for intercepts.
  • Changing the sign incorrectly when isolating \(y\).
  • Mixing up vertical and horizontal lines.
  • Dropping a negative sign when moving terms.

Practice Problems

  1. Graph \(3x + 2y = 12\).
  2. Graph \(x - 4y = 8\).
  3. Convert to slope-intercept: \(6x + 2y = 10\).
  4. Identify special case: \(5x = 20\).
  5. Convert: \(2y - 8 = 4x\).

3.
\[ 2y = -6x + 10 \Rightarrow y = -3x + 5 \]

4.
\(5x = 20\) → vertical line (\(x = 4\)).

5.
\[ 2y = 4x + 8 \Rightarrow y = 2x + 4 \]

Summary

  • Standard form \(Ax + By = C\) is ideal for finding intercepts quickly.
  • Use the intercepts to sketch the line efficiently.
  • Convert to slope-intercept form when needed by isolating \(y\).
  • Special cases occur when \(A = 0\) (horizontal) or \(B = 0\) (vertical).
  • For quick graphing: set \(x=0\), set \(y=0\), plot both points.
  • Always rewrite slope as a fraction to visualize rise/run.
  • Keep track of signs when moving terms across the equals sign.
  • If only one variable remains (like \(5x = 20\)), the line is vertical or horizontal.
